APC APCC7252 75 Sq Ft Pool Filter Cartridge
7-1/4″ x 14-5/8″ replacement element, open ends, 75 sq ft media.

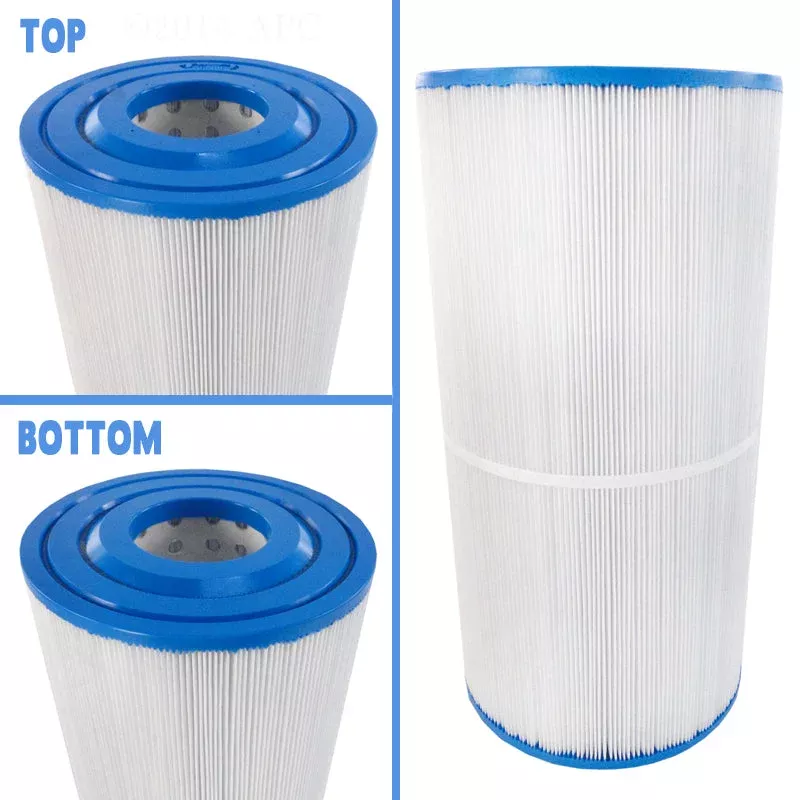

The APC APCC7252 is a 75 square foot replacement filter cartridge measuring 7-1/4 in outer diameter by 14-5/8 in length with open 2-15/16 in end caps. It drops in as a direct replacement for the Advantage Manufacturing ELE-75 element and crosses to Unicel C-7301, Pleatco PAE75, and Filbur FC-6315.
Identification
| Brand | APC |
|---|---|
| MPN | APCC7252 |
| PST SKU | PST-APCC7252 |
| OEM Element | Advantage Manufacturing ELE-75 |
| Type | Pleated Cartridge Filter Element |
Dimensions
| Outer Diameter | 7-1/4 in |
|---|---|
| Length | 14-5/8 in |
| Top End Cap | Open, 2-15/16 in inner diameter |
| Bottom End Cap | Open, 2-15/16 in inner diameter |
Filtration & Media
| Filter Area | 75 sq ft |
|---|---|
| Media | 3 oz point-bonded polyester |
| Pleat Count | 189 |
| Pleat Style | Banded |
| Particle Capture | 5 to 10 micron |
| Core | Punched PVC center tube |
| End Cap Material | Polyurethane |
Application & Warranty
| Best For | Above-ground pools up to ~10,000 gal |
|---|---|
| Mount | Slip-over open end, both ends open |
| Sold As | Single cartridge |
| Warranty | 12 Months |
Compatibility
- Advantage Manufacturing Electric 75 cartridge filter systems
- Advantage Manufacturing ELE-75 stand-alone filter elements
- Sonfarrel 75 sq ft cartridge filter housings
- Any 75 sq ft housing built for a 7-1/4 in OD x 14-5/8 in open-end element
Cross-References C-7301PAE75PC7301FC-6315FC631517535ELE-75R173544XLS-70117-175-2205 Notes
Does this match my old cartridge?
Confirm three things: an outer diameter of 7-1/4 in, a length of 14-5/8 in, and open end caps on both ends with a 2-15/16 in opening. If your filter housing matches all three, this 75 sq ft element fits.
Is this the same as a Unicel C-7301 or Filbur FC-6315?
Yes. The APCC7252 is the same 75 sq ft element as Unicel C-7301, Pleatco PAE75, and Filbur FC-6315. Any of those part numbers off your spent cartridge confirm this is the correct replacement. Replace it when pleats stay gray after cleaning, the media tears, or backpressure climbs right after a rinse.
Can I install it myself?
Yes. Power down the pump, relieve pressure, open the filter housing, lift out the old element, seat the new cartridge over the standpipe, and reassemble. No tools or special skills required.
