A&A Top Feed Upper Housing with Speed Control and Diverter Kit | 230024

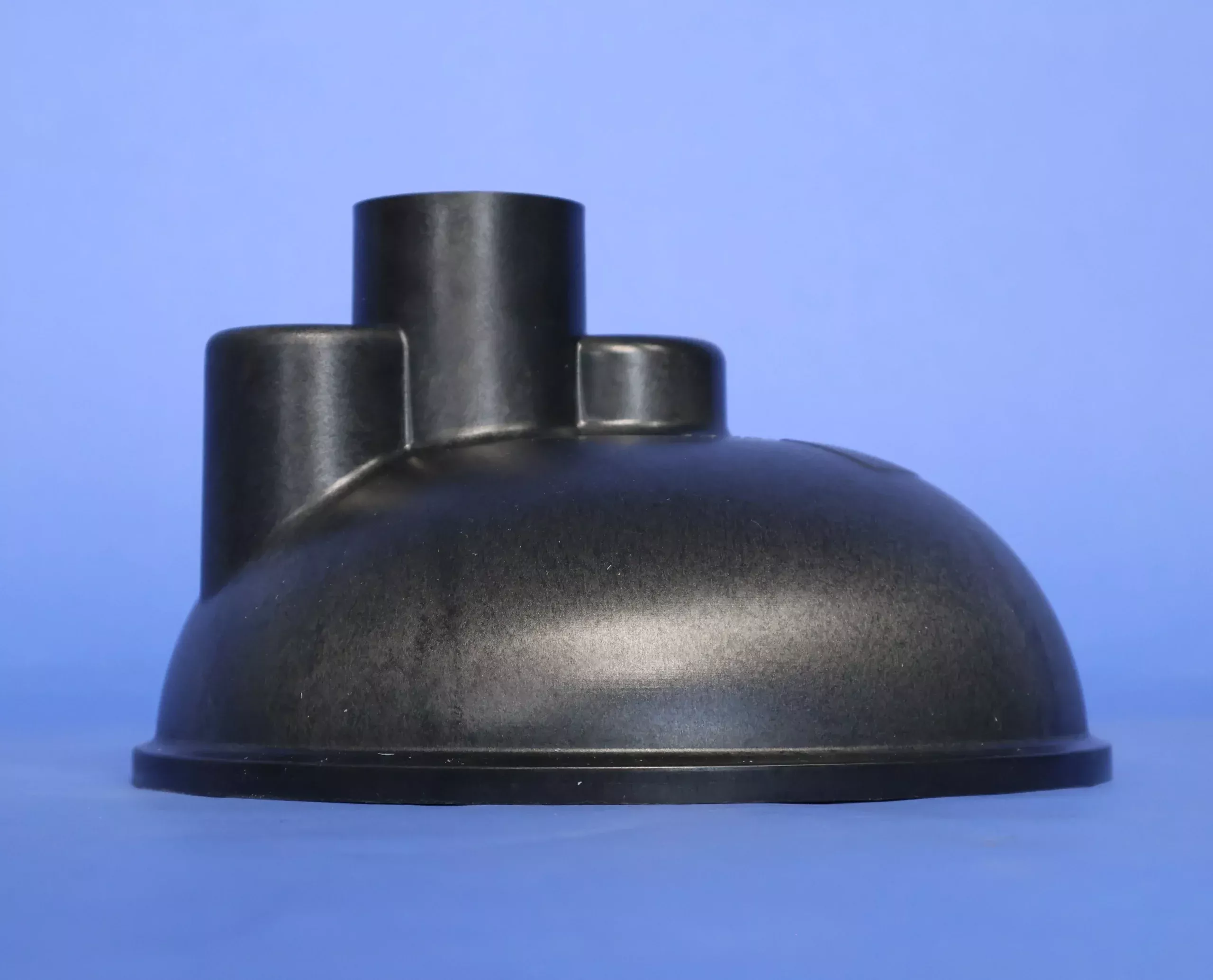

The A&A 230024 Top Feed Upper Housing with Speed Control and Diverter Kit is a replacement upper valve housing used on A&A and Pentair in-floor cleaning system top-feed valves. This assembly mounts to the top of the valve body and contains the speed control dial and diverter components that regulate water flow and direct pressure to the active cleaning zones.
Key Functions
- Forms the upper section of a top-feed in-floor valve
- Houses the diverter that routes water to the active outlet ports
- Includes an adjustable speed control to fine-tune valve rotation timing
- Helps maintain proper sealing and internal alignment of valve components
Compatibility
- Designed for A&A / Pentair top-feed in-floor cleaning system valves
- Used on both 5-port and 6-port top-feed valve configurations
- Not compatible with low-profile or glue-in valve styles
Fitment Tip: This part is specific to top-feed valve bodies. Confirm your valve uses a band clamp-style upper housing before ordering.
What’s Included
- Upper housing assembly
- Integrated speed control dial
- Integrated diverter assembly
Installation Notes
- Turn off the pump and relieve all system pressure.
- Remove the band clamp securing the existing upper housing.
- Lift off the old housing and inspect the valve O-ring.
- Install the replacement housing, ensuring proper alignment of the diverter.
- Reinstall and evenly tighten the band clamp.
- Restart the system and verify correct zone rotation and timing.
When to Replace
- Cracked or warped upper housing
- Broken or sticking speed control dial
- Internal diverter damage causing improper zone sequencing
- Leaks at the top of the valve body
Maintenance Tips
- Periodically check that the speed control dial turns smoothly.
- Inspect the housing O-ring during seasonal service and replace if flattened or brittle.
- Keep debris and sand out of the valve to reduce wear on internal components.
