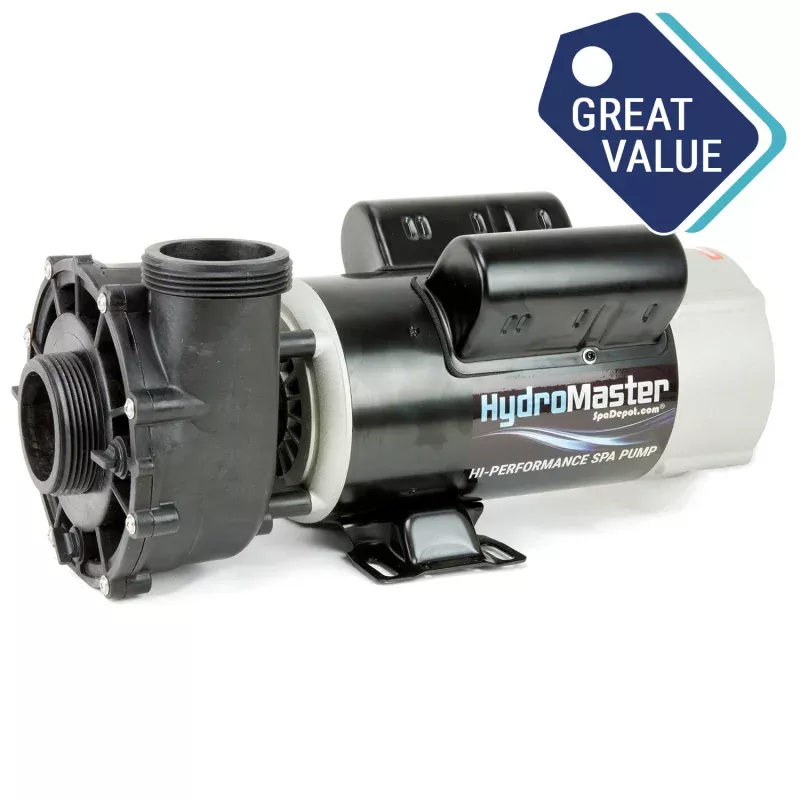

HydroMaster High Performance Spa Pumps take reliability and durability to a new level. You cannot buy a better replacement hot tub pump at any price.
- 2″ Side discharge
- Universal 2-Speed & 1-Speed use
- Replacement for Aqua Flo XP2 / XP2e
- Replacement for Waterway Executive and EX2*
Product Notes: Jacuzzi and Sta-Rite brands may use non-standard fittings with different dimensions. *Check wet end measurements, especially if using rigid (non-flex) plumbing.
Pump Wiring & Speed Setup Instructions
Pump Selection & Installation Guide
Details
Voltage: 220-240V
Speed: 2-speed: 3450RPM high/1725RPM low
Horsepower: 2 HP
Amperage: 10A high/3A low
Gallons Per Minute: 170 GPM (high speed)
Frame Size: 48 Frame
Intake: 2 plumbing (3 O.D. pump threads)
Discharge: 2 plumbing (3 O.D. pump threads)
Discharge Type: Side
Wet End Discharge Orientation: Top (can easily be rotated)
Wet End Drain: Tapped & threaded for 3 plugs (included)
Overall Length: 17
Waterway Cross Reference: 3420820-1U
Aqua Flo Cross Reference: 05625017-2, 06620008-2, 06125000-1040, 06120500-2040, 06120298-1040, 06120000
Other Reference Numbers: 48WUA200-II, 48WUA200-I, 0974001, 72991, 72992, 73023, C55MWKBT-4824, DJAYFB-0001
Certification: UL Recognized
Limited Manufacturer’s Warranty: 1-Year
